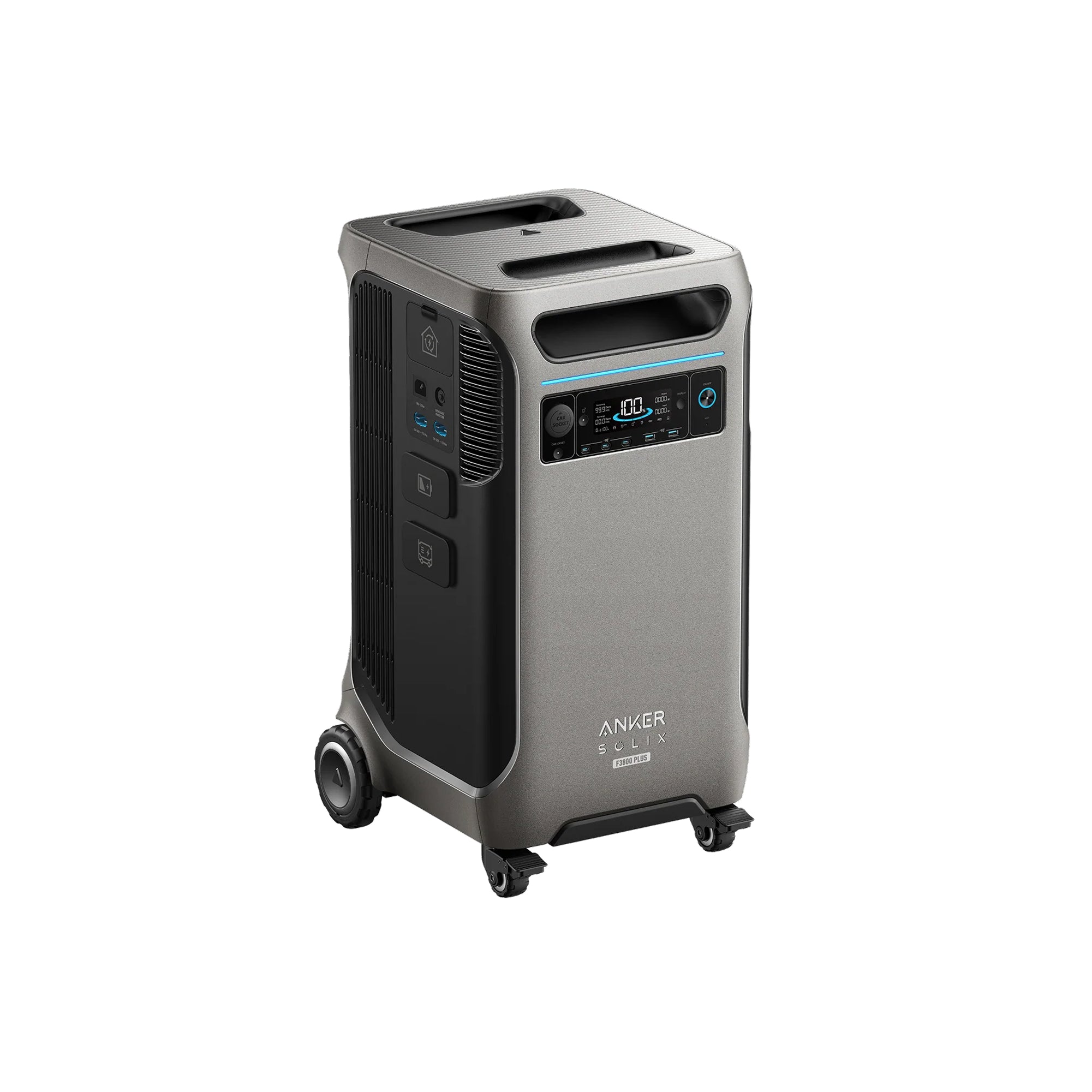

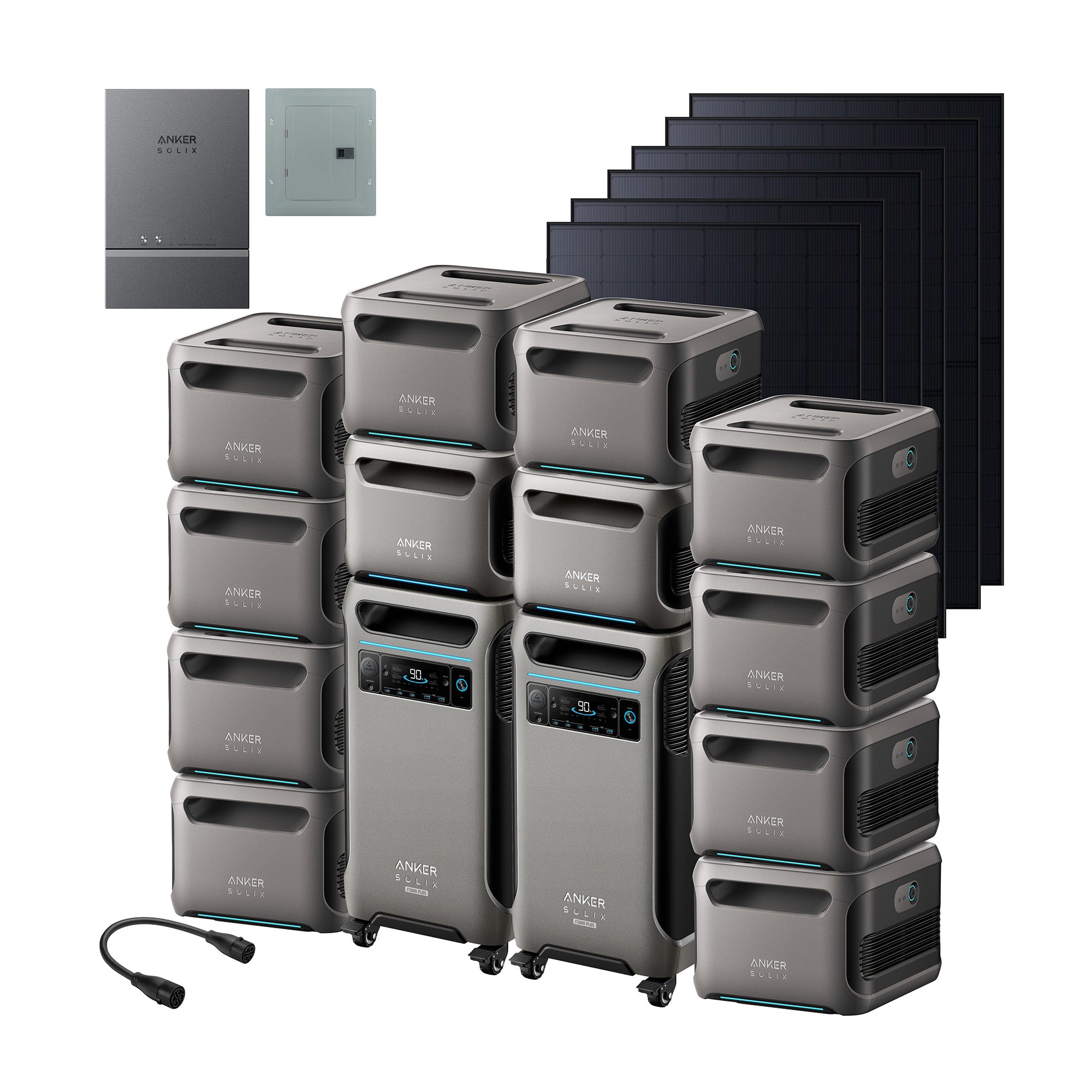

Anker SOLIX F3800 Plus 53.8kWh Smart Whole-Home Power Kit

Please review these scenarios to determine how F3800 Plus's output ports can be used.

Condition 1: No AC input power is connected.
Usable AC Output Ports:
• TT-30R (120V~25A)
• L14-30R (120/240V~25A)
• NEMA 5-20R (3 Leftmost Ports, UPS)
• NEMA 5-20R (3 Rightmost Ports)

Condition 2: When a 120V generator is connected; not plugged into a 120V wall outlet.
Usable AC Output Ports:
• TT-30R (120V~25A): Output available when connected to the L1 phase. Bypass limit of up to 3,000W. No output when connected to the L2 phase.
Switching Time:
F3800 Plus to Generator: 30 ms.
Generator to F3800 Plus: 50 ms.
Non-Usable AC Output Ports:
• L14-30R (120/240V~25A)
• NEMA 5-20R (3 Leftmost Ports, UPS)
• NEMA 5-20R (3 Rightmost Ports)

Condition 3: When a 240V generator is connected; not plugged into a 120V wall outlet.
Usable AC Output Ports:
• TT-30R (120V~25A): Output available with a bypass limit of up to 3,000W.
• L14-30R (120/240V~25A): Output available with a bypass limit of up to 6,000W.
Non-Usable AC Output Ports:
• NEMA 5-20R (3 Leftmost Ports, UPS)
• NEMA 5-20R (3 Rightmost Ports)

Condition 4: No generator connection; plugged into 120V wall outlet.
Usable AC Output Ports:
• TT-30R (120V~25A): Output available. No UPS. Bypass limit of up to 1,440W.
• NEMA 5-20R (3 Leftmost Ports, UPS): Output available with bypass limit of up to 1,440W.
Switching Time: 20 ms
Non-Usable AC Output Ports:
• L14-30R (120/240V~25A)
• NEMA 5-20R (3 Rightmost Ports)

Condition 5: Connected to 120V generator; plugged into 120V wall outlet.
Usable AC Output Ports:
• TT-30R (120V~25A): Output available when connected to the L1 phase wth a bypass limit of up to 3,000W. No output when connected to the L2 phase.
Switching Time:
F3800 Plus to Generator: 30 ms
Generator to F3800 Plus: 50 ms
Non-Usable AC Output Ports:
• L14-30R (120/240V~25A)
• NEMA 5-20R (3 Leftmost Ports, UPS)
• NEMA 5-20R (3 Rightmost Ports)

Condition 6: Connected to 240V generator; plugged into 120V wall outlet.
Usable AC Output Ports:
• TT-30R (120V~25A): Output available with a bypass limit of up to 3,000W. If the generator stops outputting, please see Condition 4 above.
• L14-30R (120/240V~25A): Output available with a bypass limit of 6,000W max. If the generator stops outputting, please see Condition 4 above.
Non-Usable AC Output Ports:
• NEMA 5-20R (3 Leftmost Ports, UPS)
• NEMA 5-20R (3 Rightmost Ports)

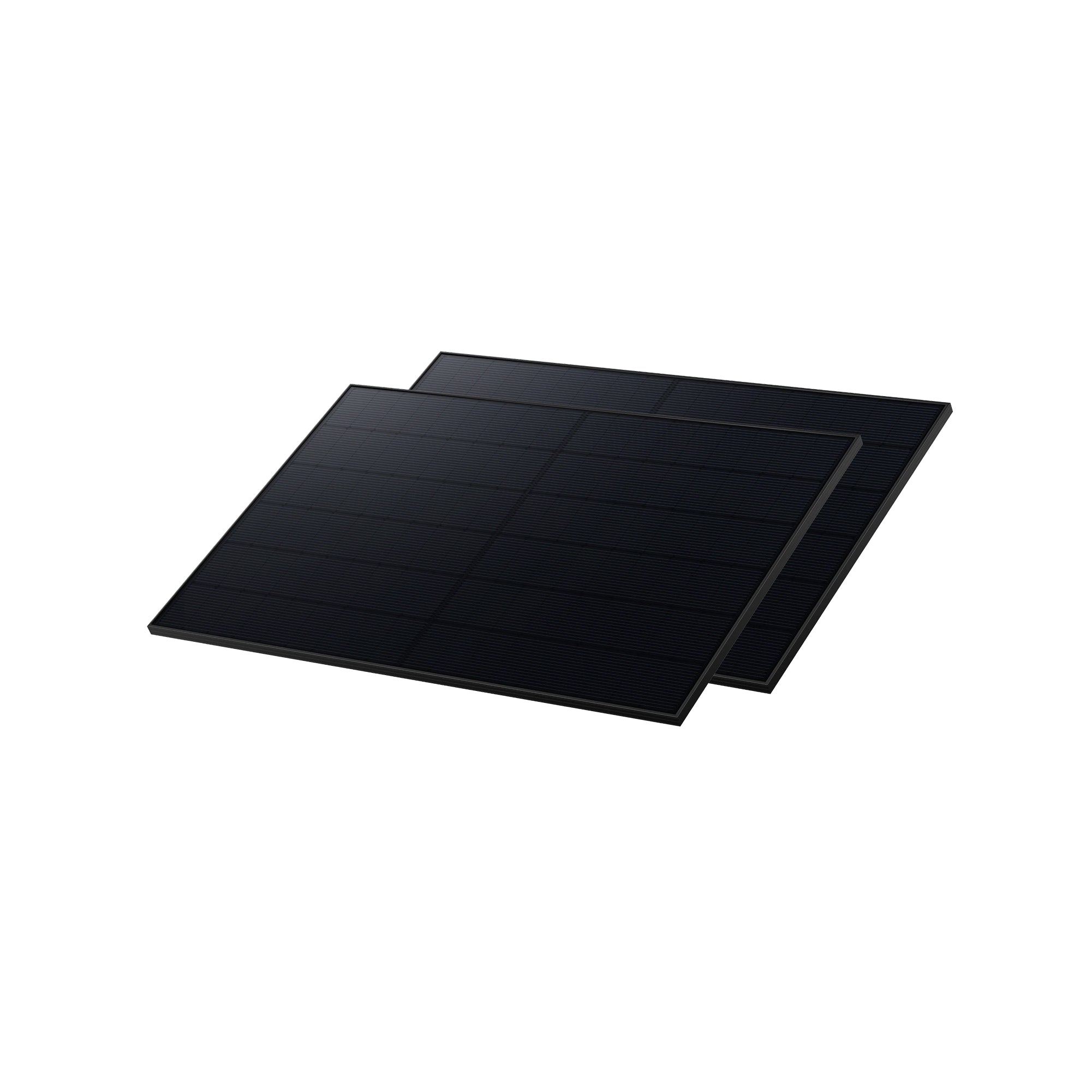

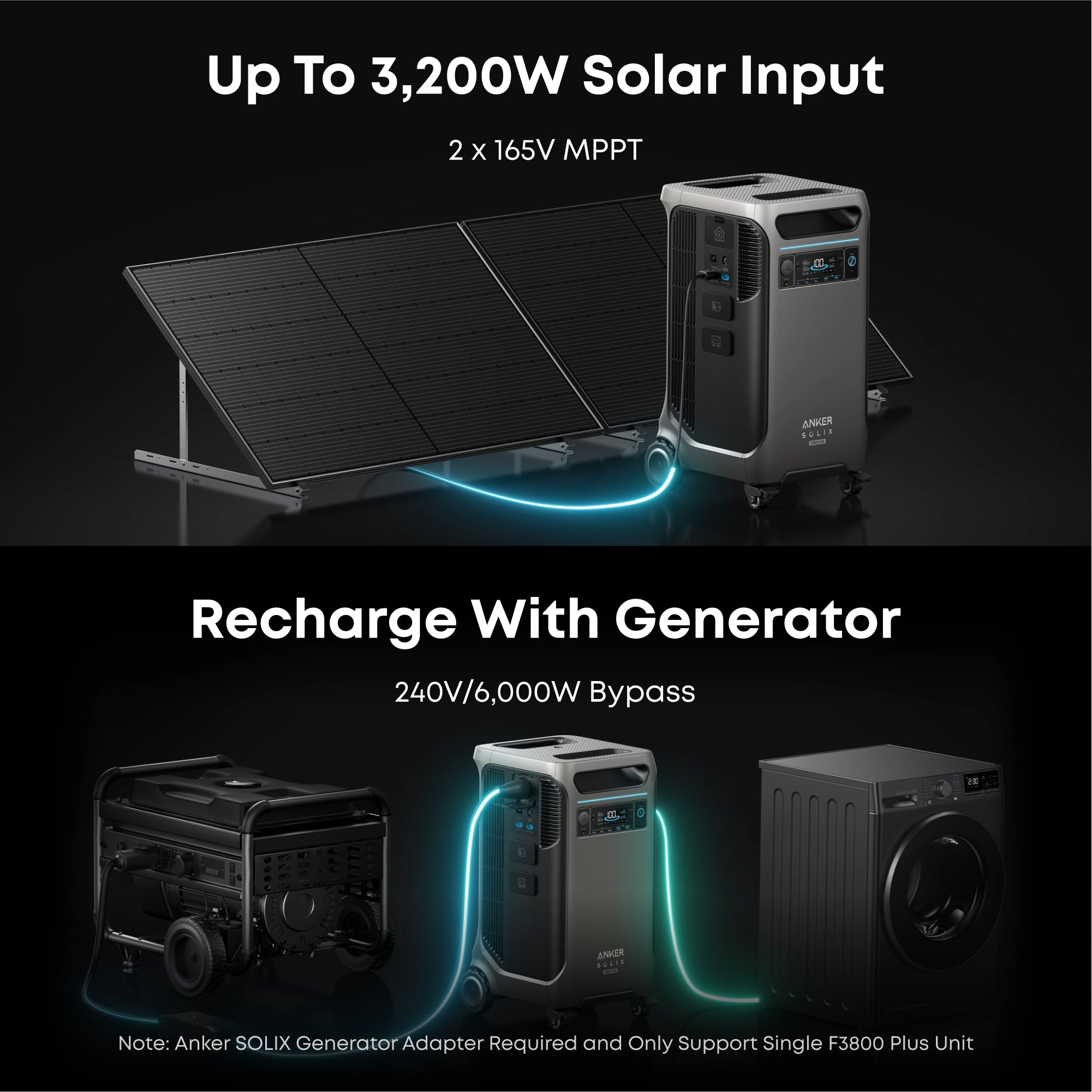

Plug solar panels into one of F3800 Plus Portable Power Station's 2 solar input ports. Each one supports an 11-165V solar charger with a solar charging connection. The current supports 17A max.

No. When outages occur, directly connect F3800 Plus to your 11-165V solar panels to charge it. Please note that exceeding 165V may cause damage to the solar input ports.

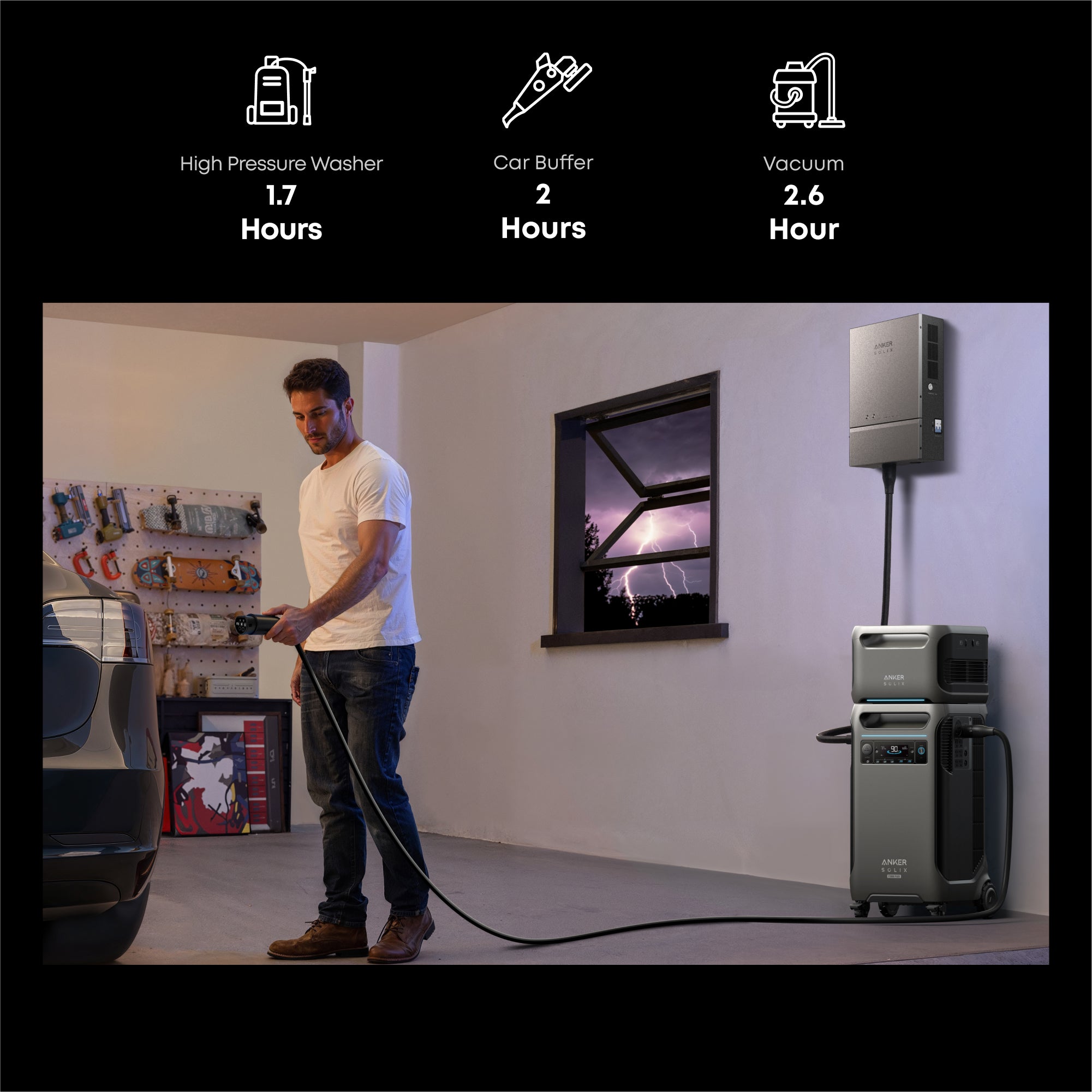

Double-press the AC Outlet Button to activate EV mode charging. Please make sure to set the charging rate to less than 25A so that F3800 Plus can charge your EV, such as a Tesla.

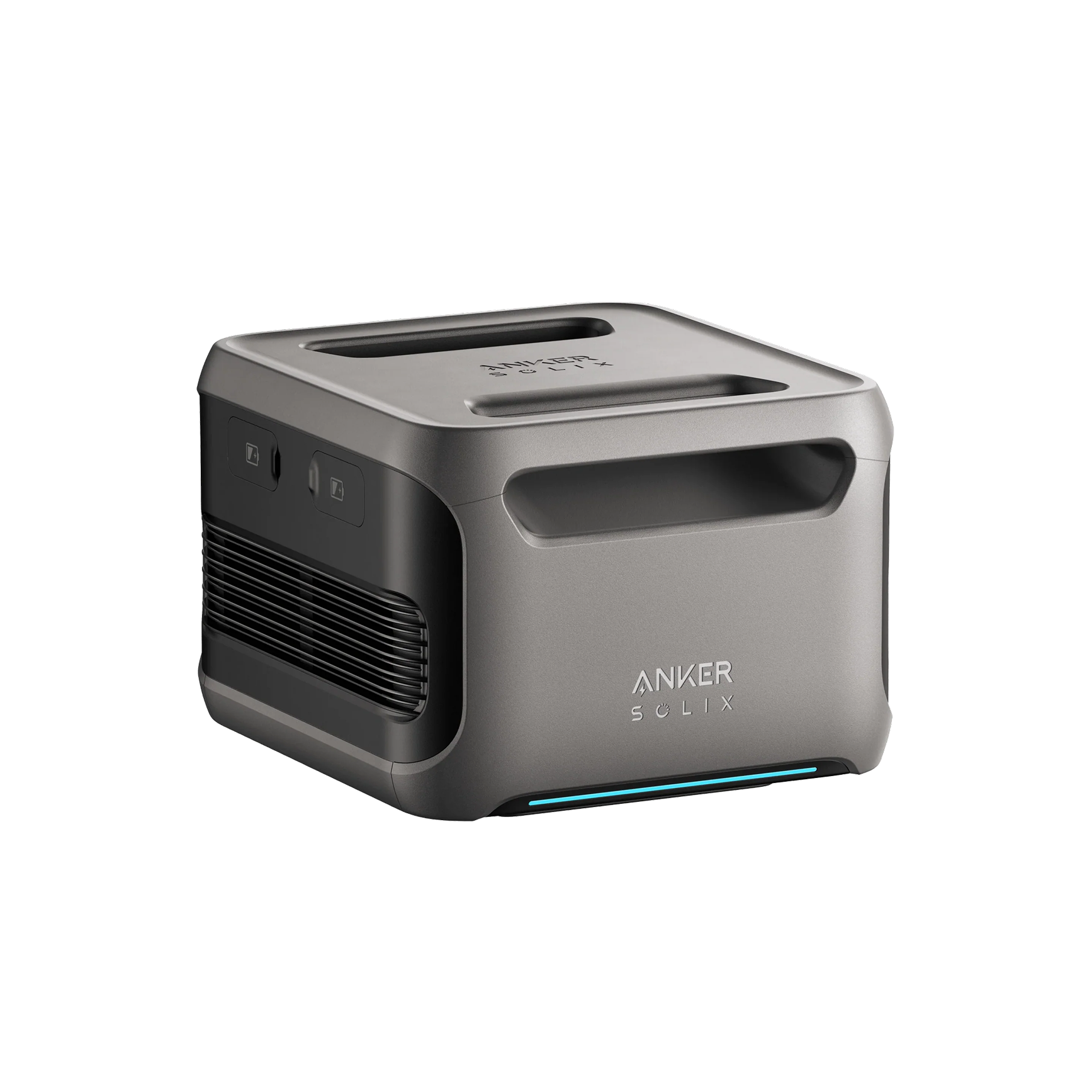

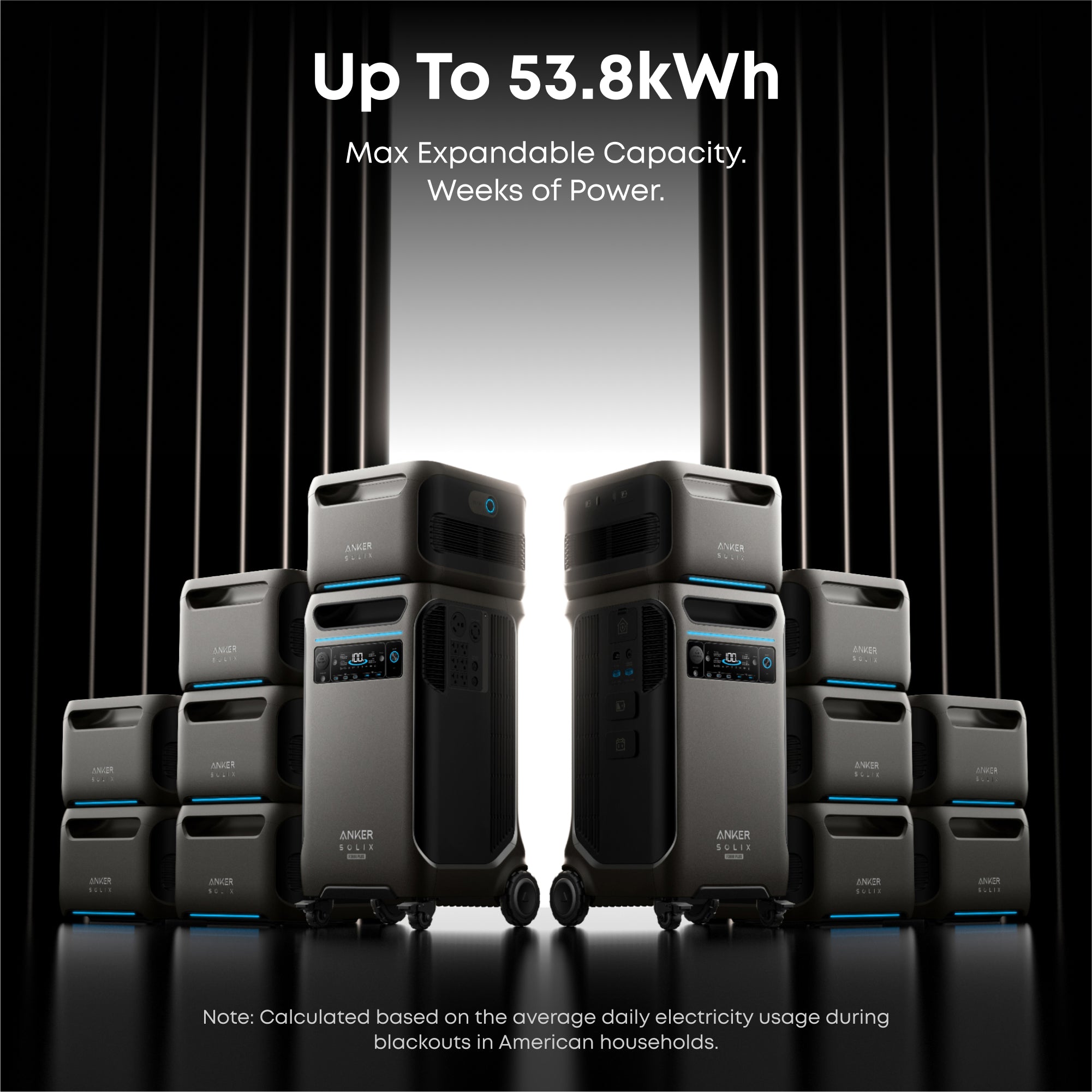

Each F3800 Plus can connect up to six BP3800 Expansion Batteries. Note that both the expansion battery and F3800 Plus will gradually equalize their power levels. This is done to maximize product lifespan.

No, when F3800 Plus is recharging via the 120V AC input, you can only use its three 120V UPS outlets to charge other devices.

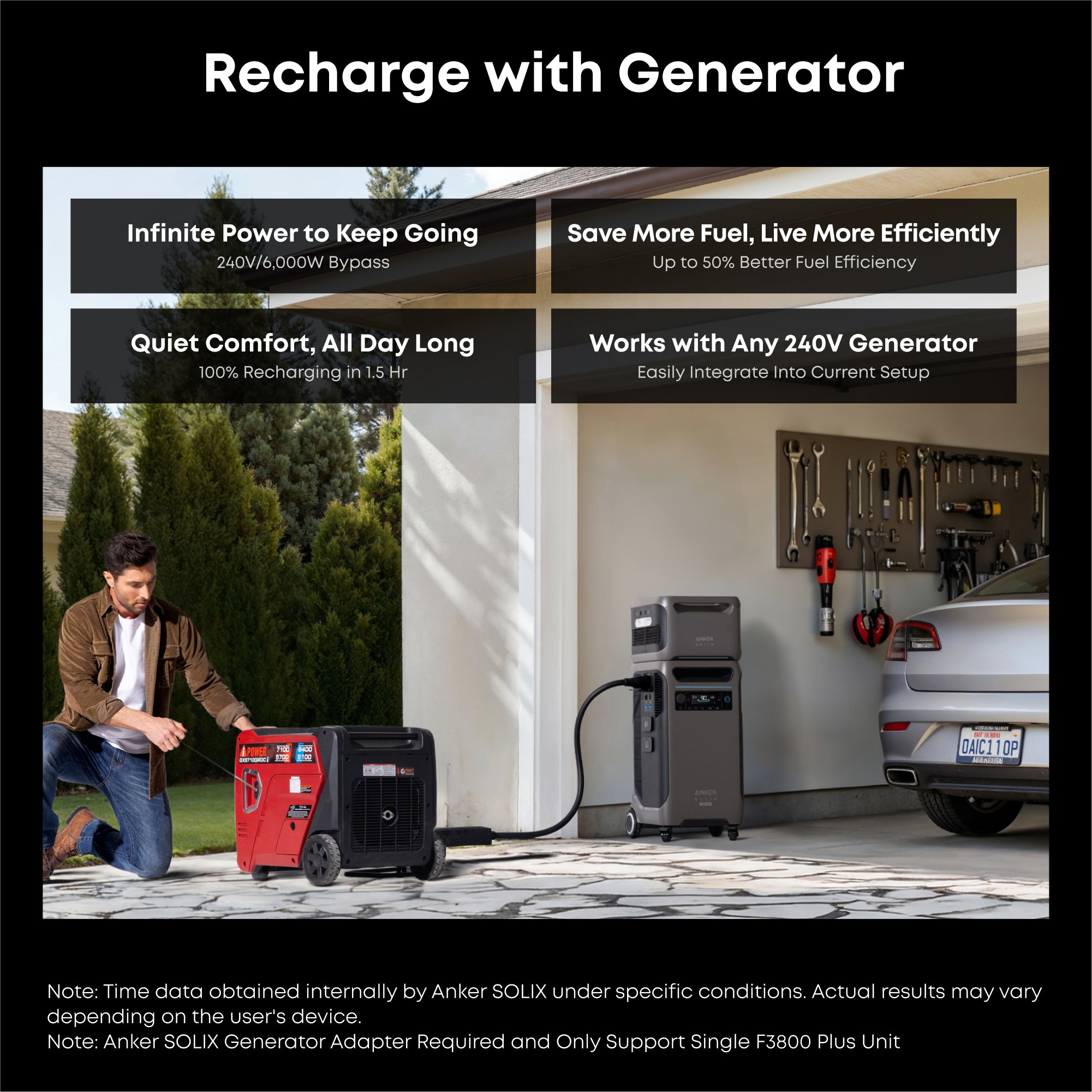

When F3800 Plus recharges via a 240V generator through its Home Power Panel port, use the NEMA L14-30R (240V) and TT-30R (120V) ports to charge other devices.

Yes, F3800 Plus supports AC input and DC input, via its solar input ports, at the same time.

When F3800 Plus recharges via a 120V generator through its Home Power Panel port, only the TT-30R (120V) port can charge other devices.

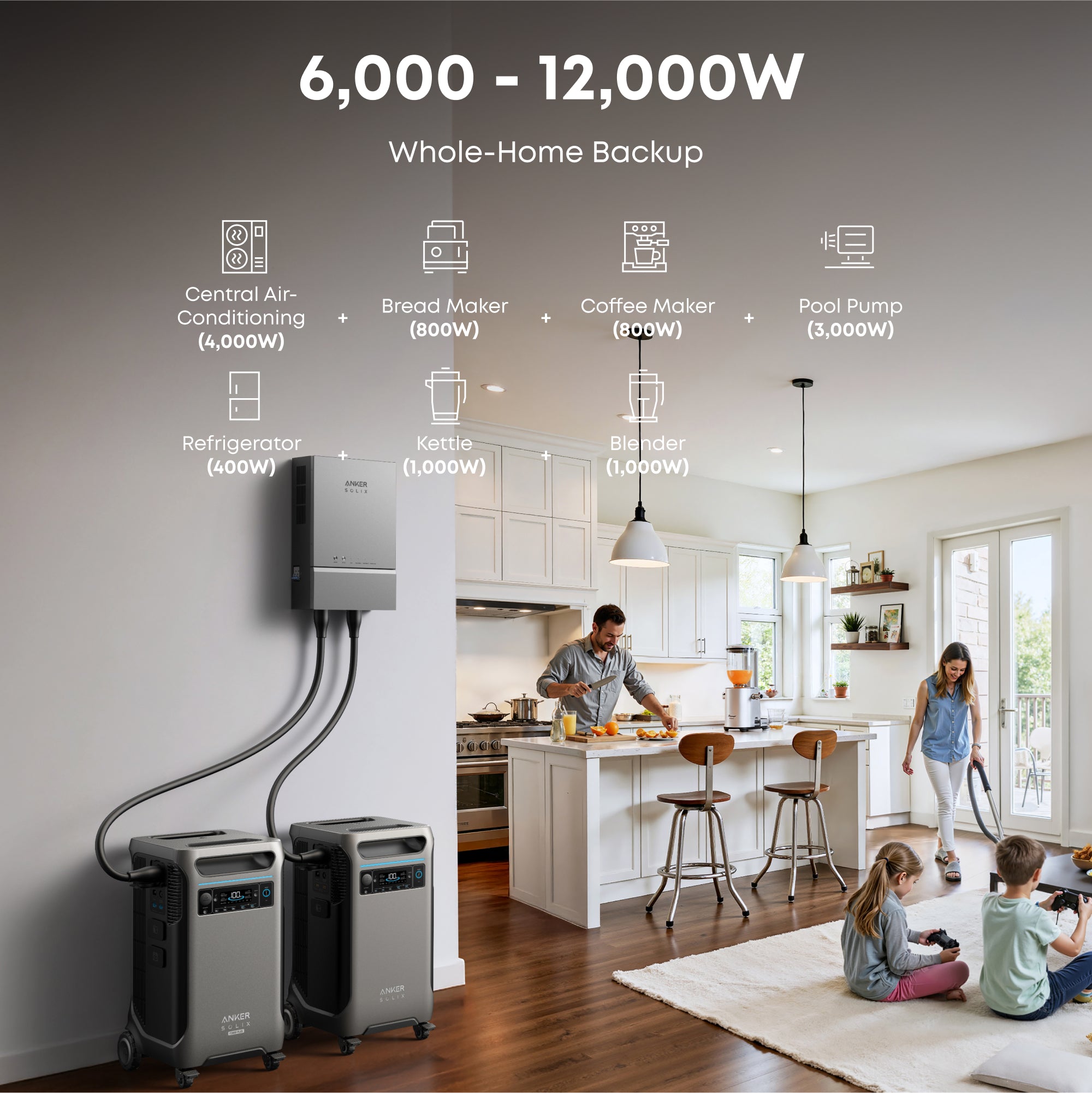

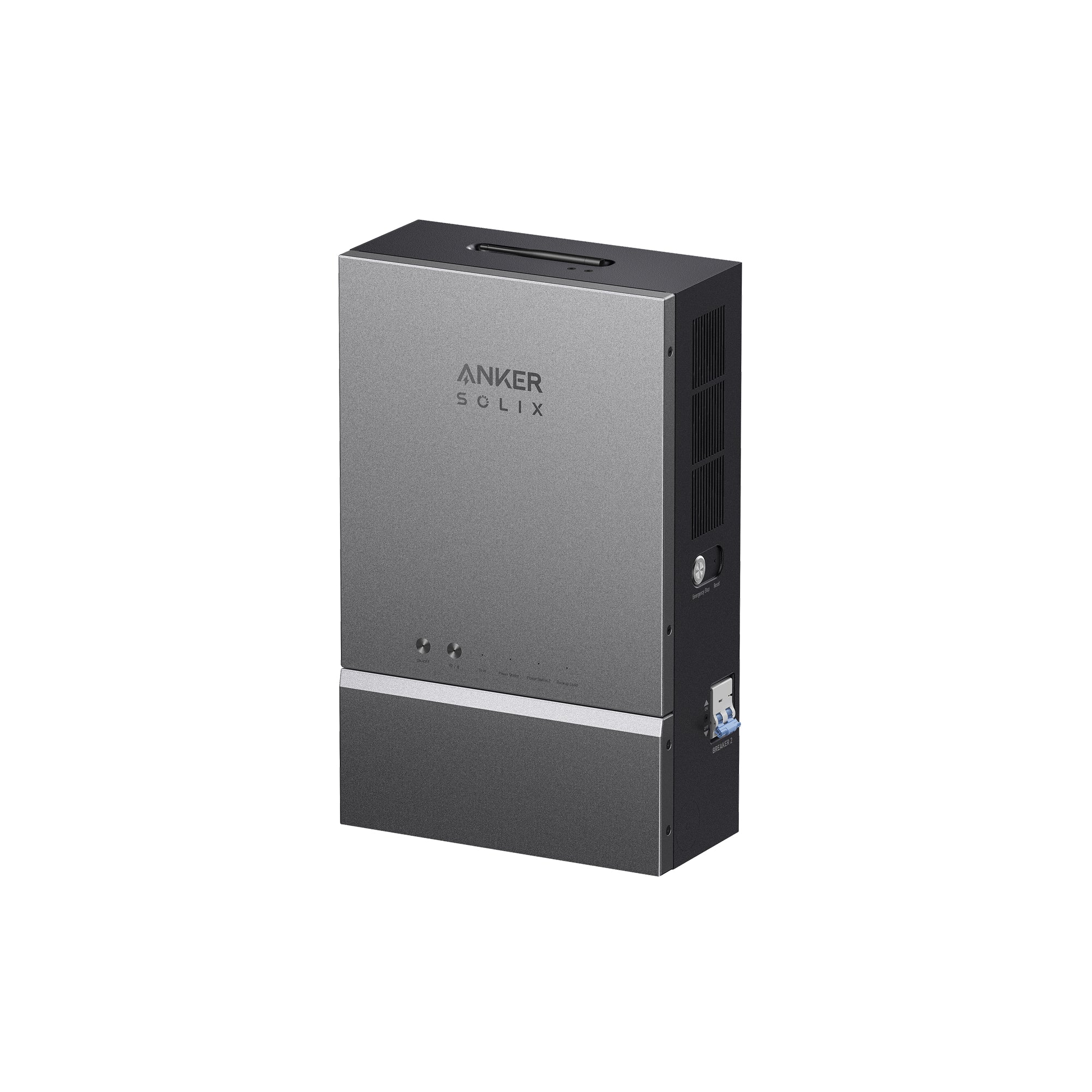

Yes. Either connect F3800 Plus to one Home Power Panel port and your 240V generator to the other, or connect two F3800 Plus power stations to Home Power Panel.

No, because the Home Power Panel ports are already in use, so it's not possible to connect them to a generator. Also, when the Hub button activates, it deactivates the AC input and output ports.

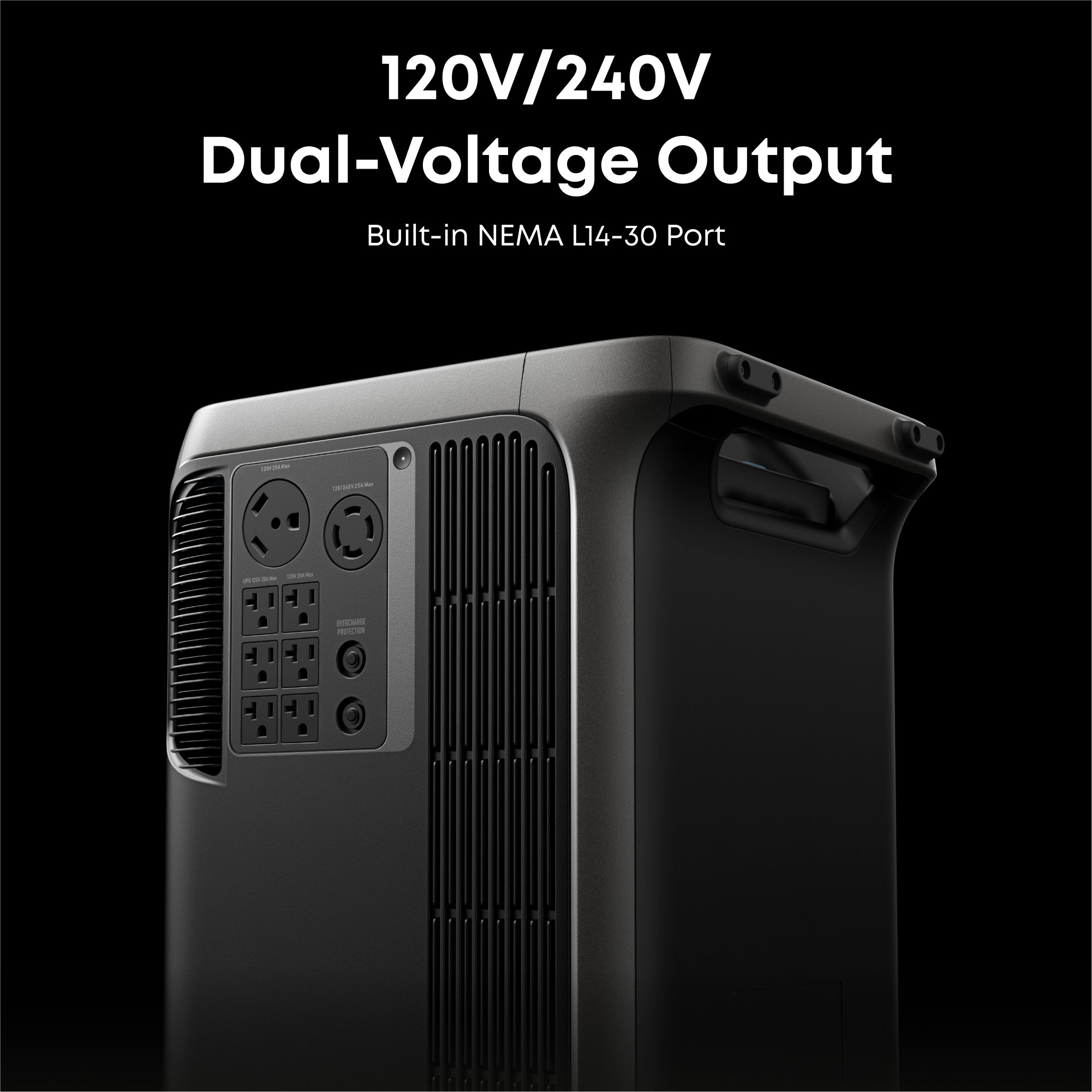

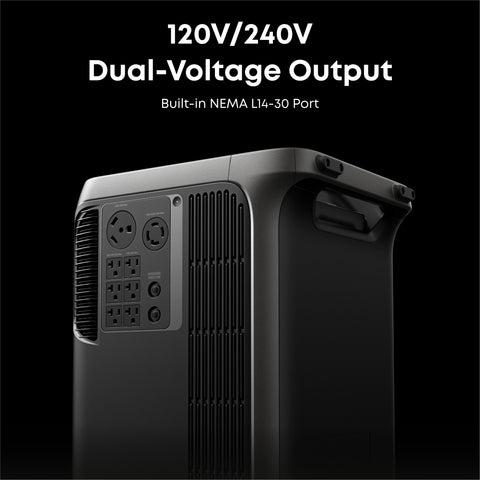

The AC output ports can deliver a maximum of 6,000W to connected devices. Each group of NEMA 5-20R AC output ports can deliver 2,400W (120V/20A) of power.

The USB-C ports are output only.

EV charging power varies by country and region. In the US and Canada, it's as follows:
Max Output: 6,000W.
Max Voltage: 240V.
Max Amperage: 25A.

With AC on and no devices connected, F3800 Plus consumes about 40W, conserving energy and extending battery life. The idle discharge duration is about 95 hours. Be sure to update your firmware to version 3.3.5 for optimal performance.

Press the On/Off Button for 2 seconds to power the expansion battery on or off.

Only F3800 is compatible with the expansion battery.

Each F3800 can connect up to 6 expansion batteries.

The expansion battery cannot be used separately. It must be connected to the power station to charge or discharge and to monitor its status via the Anker app.

When F3800 is connected to expansion batteries, the power of all devices will automatically balance. This ensures stable battery health. It's normal for the power levels to change in F3800 and expansion batteries, too.

The solar input supports an 11-60V solar charger with an XT-60 connector. If you use an 11-32V solar charger, the current supports 10A max. When you use a 32-60V solar charger, the current supports 25A max.

If the power station is stored at a low capacity for a long time, lithium batteries will self-consume power which may lead to a quick discharge. This leads to poor conductivity and a reduced battery lifespan, resulting in poor battery performance.

To store your portable power station, make sure you have: <0l>

Turned off all outputs.

Store it in a cool and dry place.

Check the battery capacity each week. If it's below 30%, fully charge.

Charge the power station to 100% every 3 months.

In UPS mode, only the three 120V ports labeled "UPS" are operational; the 240V ports do not function.

Double-press the 240V power switch to activate EV mode charging, then you can recharge your EV.
